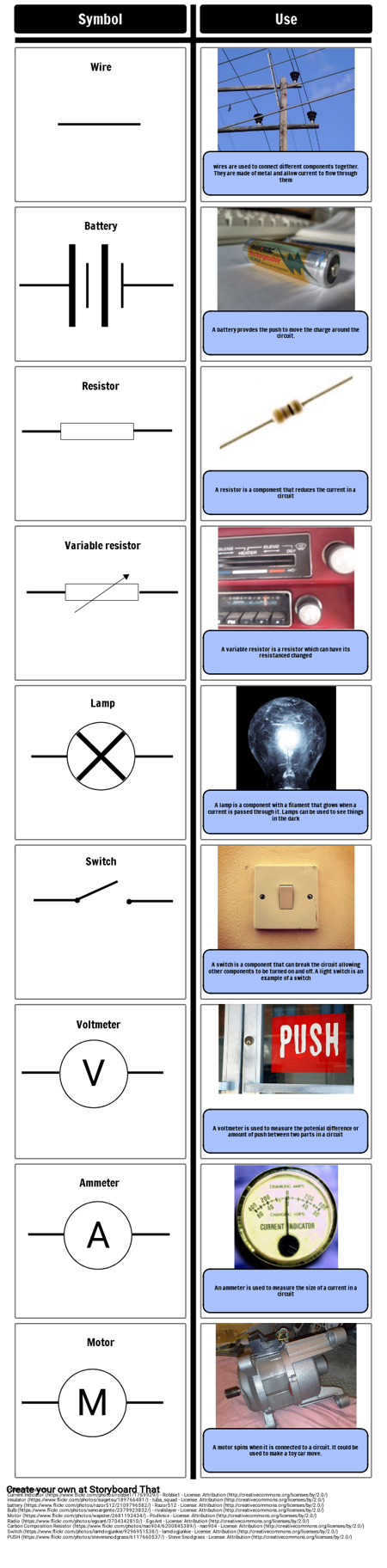

Circuit compoments T chart answers
Storyboard Text
- Slide: 1
- Wire
- Slide: 3
- Battery
- Slide: 4
- wires are used to connect different components together. They are made of metal and allow current to flow through them
- Slide: 5
- Resistor
- Slide: 6
- A battery provdes the push to move the charge around the circuit.
- Slide: 7
- Variable resistor
- Slide: 8
- A resistor is a compoment that reduces the current in a circuit
- Slide: 9
- Lamp
- Slide: 10
- A variable resistor is a resistor which can have its resistanced changed
- Slide: 11
- Switch
- Slide: 12
- A lamp is a component with a filament that glows when a current is passed through it. Lamps can be used to see things in the dark
- Slide: 13
- Voltmeter
- V
- Slide: 14
- A switch is a component that can break the circuit allowing other components to be turned on and off. A light switch is an example of a switch
- Slide: 15
- Ammeter
- A
- Slide: 16
- A voltmeter is used to measure the potenial difference or amount of push between two parts in a circuit
- Slide: 17
- Motor
- M
- Slide: 18
- An ammeter is used to measure the size of a current in a circuit
- A motor spins when it is connected to a circuit. It could be used to make a toy car move.
